• panagenda_idna_applications_vmware_esx.ova – image file directly deployable via the VMWare vSphere client. It holds the iDNA Applications virtual appliance in open virtualization format (OVF)
• panagenda_idna_applications_hyperv_vhd.7z – 7z archive which contains the iDNA Applications virtual appliance in Microsoft Hyper-V format

We recommend running iDNA Applications production systems in a VMWare vSphere/ESX enterprise environment. An additional option is VMWare Workstation which is mainly targeted at temporary evaluation environments and are not supported for production use.
Place the license file (*.lic) in a folder on your local hard drive. This file will be uploaded to the virtual appliance in a later step using the panagenda iDNA for application web interface.

Launching iDNA Applications using virtualization software:

Recommended: VMWare vSphere/ESX via OVA

Open VMWare ESX, ESXi or vSphere and select:


The Deploy OVF Template dialog will open:

1. Source: Specify the location where you saved the iDNA Applications OVA file on your hard drive – for example: C:/Temp/panagenda_idna_applications_vmware_esx.ova


2. OVF Template Details: In this step you can inform yourself about the iDNA Applications version you are about to deploy. When you are done, just click on Next


3. Name and Location: Is the next relevant step for deploying iDNA Applications. We recommend to name this template "panagenda iDNA Applications"


4. Storage: Then you have to select a destination storage for the virtual machine files.


5. Disk Format: In this step, please select the storage format for the virtual disks. We recommend to choose "Thick Provision Eager Zeroed"


6. Network Mapping: Then select the network the deployed iDNA Applications template should use.


7. Ready to Complete: In the final step you are shown the options you set up. Click on Finish if you are satisfied with your setting to start the deployment task.

Alternative: Microsoft Hyper-V

• Extract the file panagenda_idna_applications_hyperv_vhd.7z


• Start Hyper-V Manager


• Right-click on your server and select "Import Virtual Machine" from the context menu

• Click Next on "Before you Begin" screen


• Select the folder that contains the extracted files and click Next


• Select the iDNA Applications image

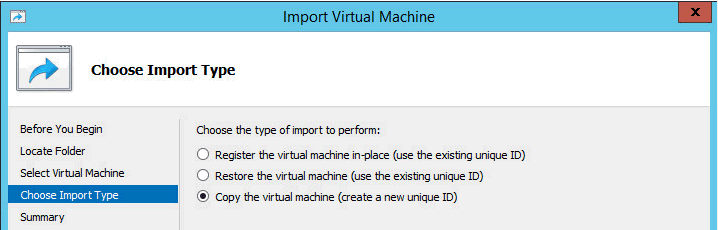

• Select "Copy the virtual machine (create a new unique ID)"



• Click Next in the "Choose Destination" screen, unless you want to set the folders individually


• Select the folder where you want to store the virtual hard disk


• Click Next int the "Configure Processor" step – please don't change the processor settings

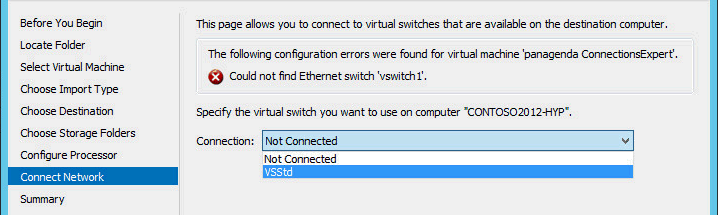

• Specify a network connection




Select Finish on the summary screen to start the copy

Alternative: VMWare Workstation/Player via VMX

• Start VMWare Workstation


• Open Virtual Machine


• Select the file panagenda_idna_applications_vmware_esx.ova
