How to Use HTML in Notifications

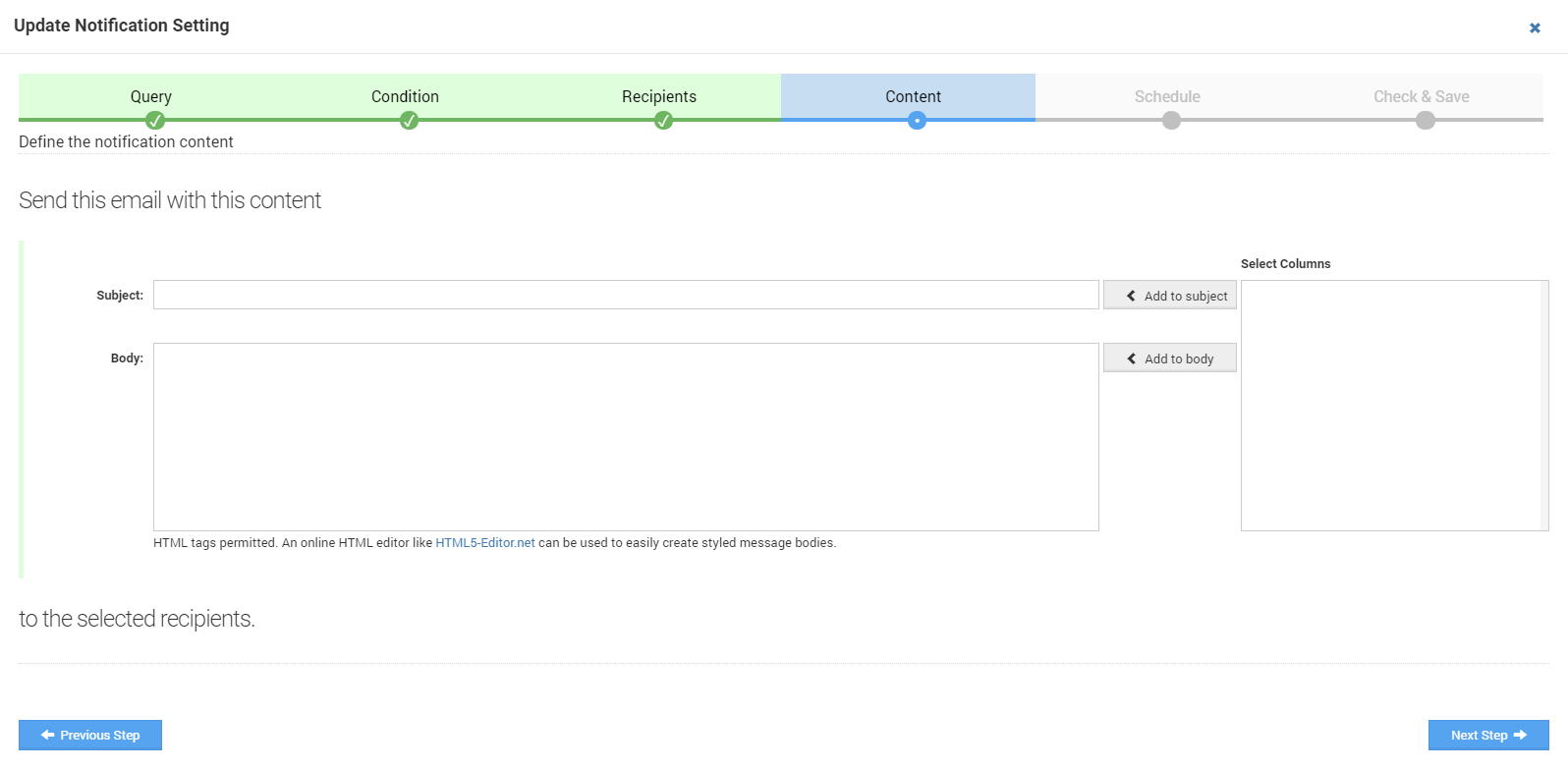

In the Body field (Step: Content in Notification Settings) you can enter plain text as well as HTML tags. This enables you to use complex HTML templates for notifications in ConnectionsExpert:

Best Practice Example

To create HTML-based notification content, we recommend the following procedure:

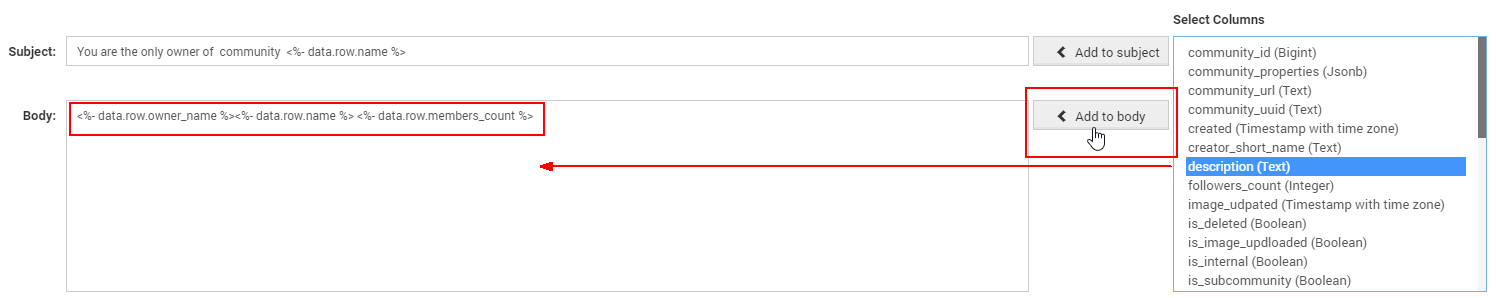

• Insert all queries (Select Columns field) that you want to use in the notification into the Body field

  Warning

  Be very careful when using queries with large result sets as they can cause problems.
  For example:

  • If the execution time of the used queries is greater than the notification check period defined in Schedule tab, the execution of the notification task will NOT finish in time







• On websites such as HTML5-Editor.net you can create content in Rich Text format and you will get the corresponding HTML code

  It is possible to embed pictures using Base64 but this technology is not supported on all recipient platforms. Alternatively, you can integrate images that can be reached via a URL.

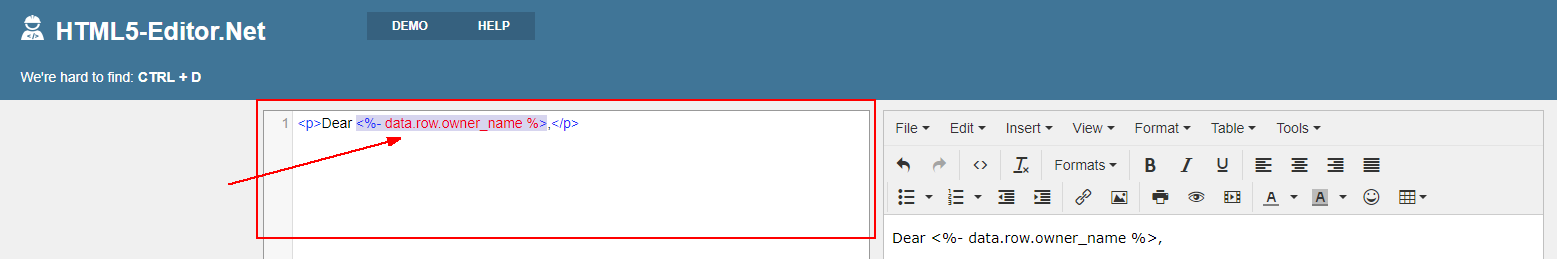

• Paste the queries you copied before into the Body field directly into the HTML code
  (if you use the Rich Text field, the original string will most likely break)





• Optional: If you want to use a more complex HTML template, we recommend to use an editor such as Notepad++ to customize the code


• Copy the final HTML code


• Remove all previously saved queries from the Body field in the Notification Settings in ConnectionsExpert


• Paste the copied HTML code into the body field

Useful Links

• https://html5-editor.net/ - Simple HTML WYSIWYG editor with side by side HTML / Rich Text content views
• https://www.quackit.com/html/online-html-editor/full/ - Full HTML editor that also allows for more complex HTML with inline CSS and style elements
• https://www.browserling.com/tools/image-to-base64 - Image Base64 encoder

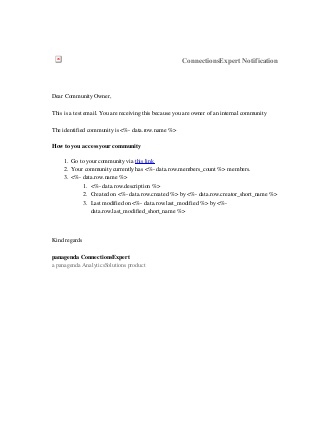

Example HTML Template

Download the following HTML template and customize it according to your requirements:
