In addition to the internal user management, existing corporate LDAP directories can be integrated in iDNA Applications.
This article explains how to configure the integration with an Active Directory and Domino LDAP.
Please note that the default iDNA Applications user accounts (e.g. Config) remain active and are valid parallel to all LDAP objects.
Active Directory

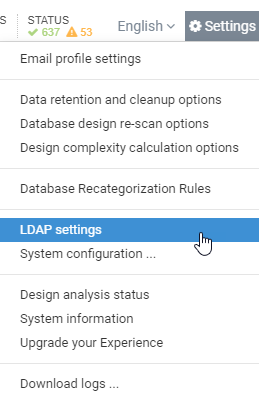

- Click on Settings - LDAP Settings

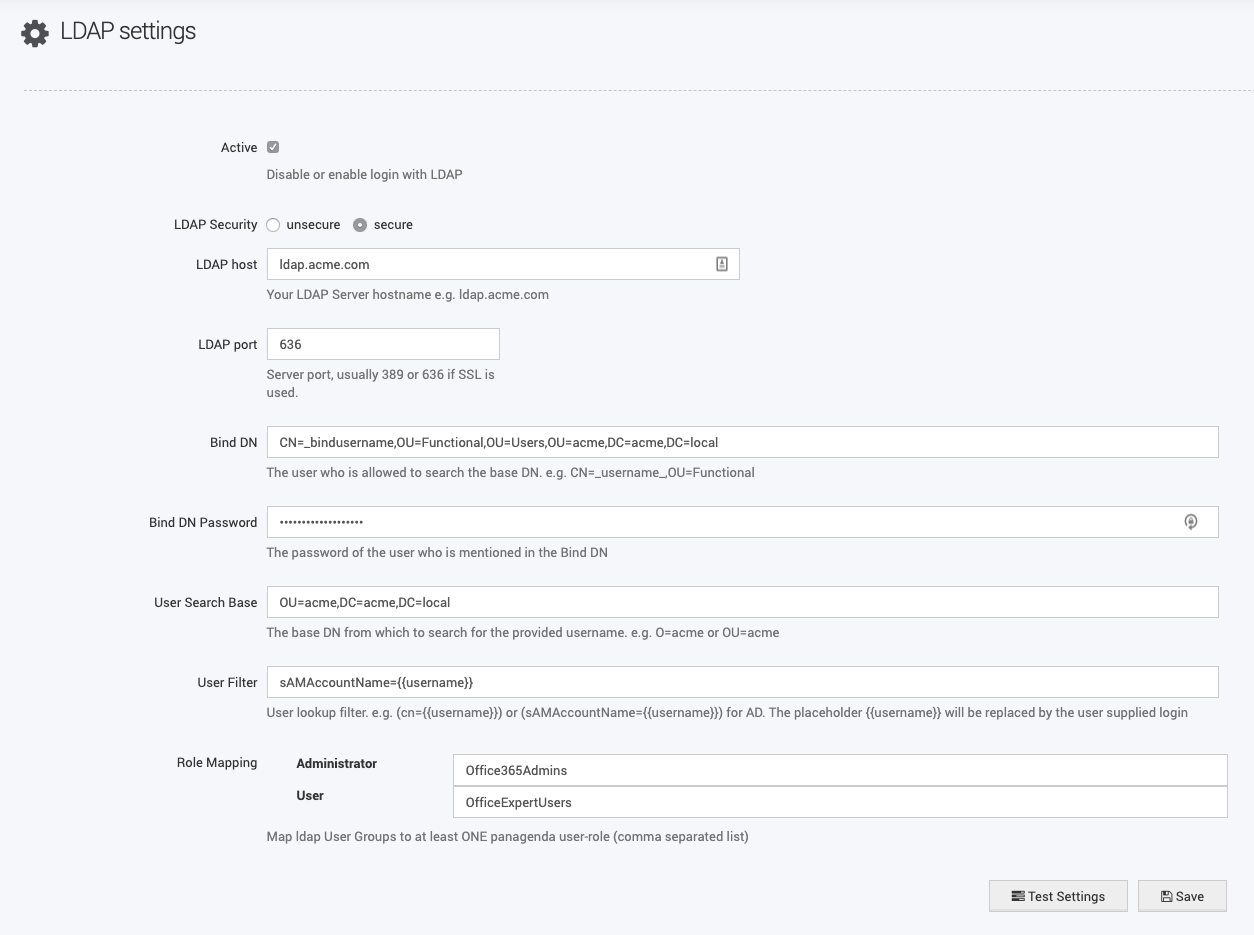

- LDAP Settings
LDAP security: Select unsecure (ldap://) or secure (ldaps://), depending on your environment
LDAP host: Enter the directory URL
LDAP port: Type in the server port
Bind DN: Enter the canonical name of the bind user
Example: CN=_bindusername,OU=Functional,OU=Users,OU=acme,DC=acme,DC=local
IMPORTANT: The binduser has to see at least one of the following member attributes: memberOf, isMember, member
Bind DN Password: Enter the password of the bind user account
User Search Base: Enter the Search Base where the User Objects are located
User Filter: For Active Directory please enter the following string:
sAMAccountName={{username}}
Role Mapping (Administrators - Monitoring- Viewer)
Assign an AD Group to the respective role
Example: Office365Admins is an AD group with certain members (all these members would gain administrator access to iDNA Applications)
IMPORTANT:
- If a user is member of an Administrator group and Viewer group, then the User gets the higher permission → Administrator
- If a user which is NOT member of any assigned group, tries to login, the user will not be able to login.

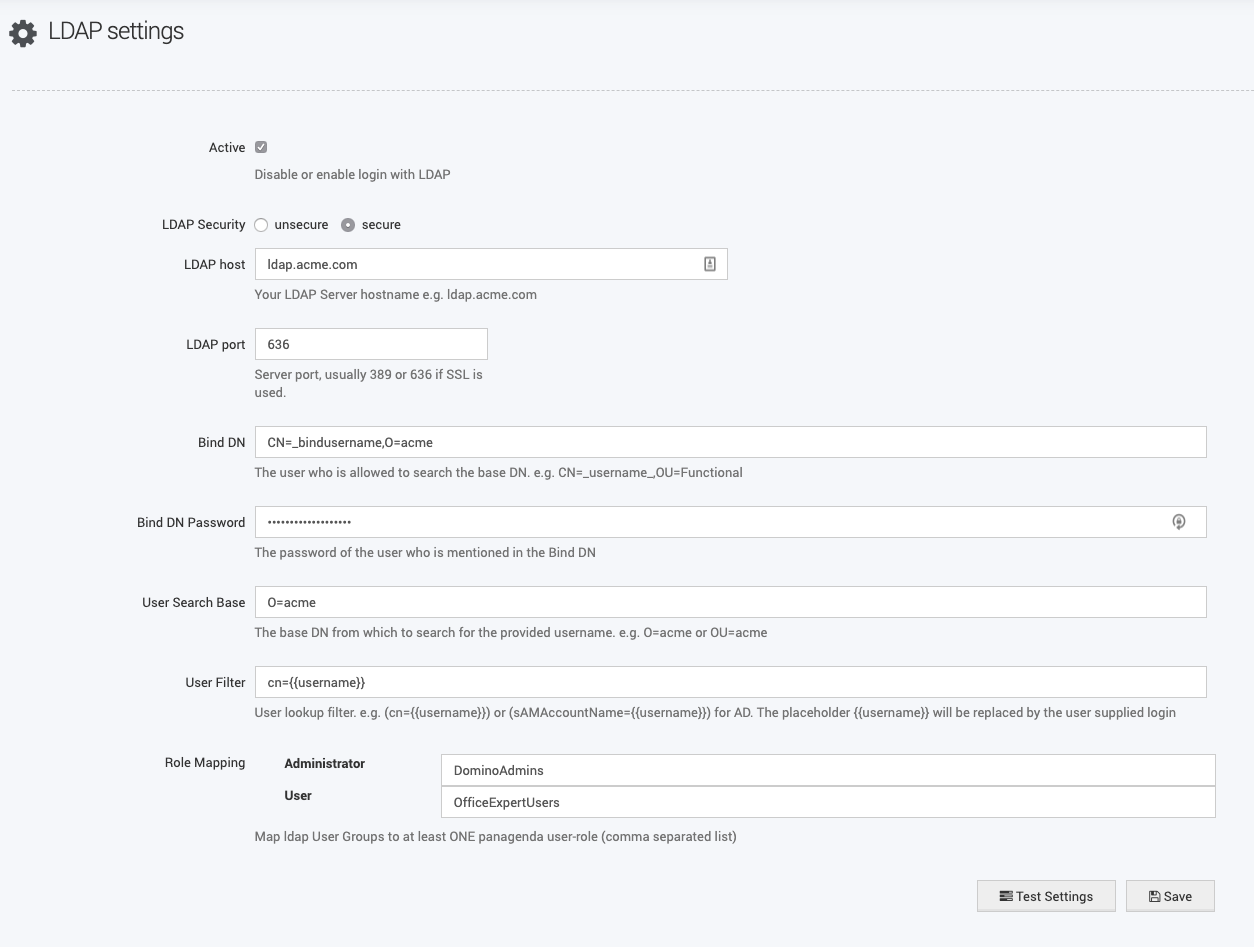

Domino LDAP
- LDAP Settings
LDAP security: Select unsecure (ldap://) or secure (ldaps://), depending on your environment
LDAP host: Enter the directory URL
LDAP port: Type in the server port
Bind DN: Enter the canonical name of the bind user
Example: CN=_bindusername,OU=Functional,OU=Users,OU=acme,DC=acme,DC=local
IMPORTANT: The bind user has to see the attribute: dominoaccessgroups
Bind DN Password: Enter the password of the bind user account
User Search Base: Enter the Search Base where the user objects are located
User Filter: for Domino LDAP please enter the following string:
cn={{username}}
Role Mapping (Administrators - Monitoring- Viewer)
Assign a Domino group to the respective role
Example: DominoAdmins is a Domino group with certain members (all these members would gain administrator access to iDNA Applications)
IMPORTANT:
- If a user is member of an Administrator group and Viewer group, then the User gets the higher permission → Administrator
- If a user which is NOT member of any assigned group, tries to login, the user will not be able to login.
