From verison 2.x on, iDNA Applications provides an external API for the following scenarios:
- With the API you can extract database and replica set information collected by iDNA Applications to use it in other applications
- With the API you can assign or update custom properties to databases or replica sets so that you can use them within iDNA Applications.
Postman
IFA API.postman_collection.json
Use the Postman collection to test the API calls.
Note that you have to set the host variable in the postman (under settings → manage environments).
The authorization headers in the postman collection are configured to use the mdapi user with the password mdapi. Either you will have to create a user with this username / password combination as described in the next section, or you will have to update it based on your existing user.
The external API is located under https:/<IFA_host_name>/api/external/xxx
Authorization

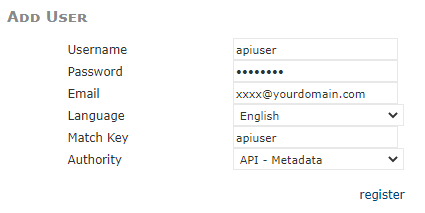

A user is required which can be created under https:/<IFA_host_name>/idna/sys/accounts
Please note that you have to select "API" from the Authority drop down list.
In order to use the API an authorization header needs to be sent. We are using Basic Authentication, so the header should look like this:
Authorization: Basic base64encode (username:password)
if your credentials are for example user:password, then the header should be:
- Authorization: Basic dXNlcjpwYXNzd29yZA==
the API returns 401 if
- No Authorization header is provided
- User credentials are wrong
- User Authority is insufficient
Database Instances
| Description | URL | Payload | Response | Response Json |
|---|---|---|---|---|
| Get a list of all databases | GET {{host}}/api/external/databases Parameters: focus - boolean: filter focus databases e.g.: {{host}}/api/external/databases?focus=true | - | Returns an array of database objects with basic information. | |
| Get a list of all databases with custom properties | GET {{host}}/api/external/databases/all/customProperties Parameters: resIds - string: comma separated list of res_id values that can be used to select specific databases e.g.: {{host}}/api/external/databases/all/customProperties?resIds=402,403,404 | - | Returns an array of database objects with custom properties | |
| Get a list of all databases with detailed information | GET {{host}}/api/external/databases/all/details Parameters: resIds - string: comma separated list of res_id values that can be used to select specific databases e.g.: {{host}}/api/external/databases/all/details?resIds=402,403,404 | - | Returns an array of database objects with detailed information (including custom properties) |
ReplicaSets
| Description | URL | Payload | Response | Response Json |
|---|---|---|---|---|
| Get a list of all replica sets | GET {{host}}/api/external/replicaSets Parameters: focus - boolean: filter focus databases e.g.: {{host}}/api/external/replicaSets?focus=true | - | Returns an array of replica set objects with basic information | |
| Get a list of all replica sets with custom properties | GET {{host}}/api/external/replicaSets/all/customProperties Parameters: replicaIds- string: comma separated list of replicaid values that can be used to select specific replica sets e.g.: {{host}}/api/external/databases/all/customProperties?replicaIds=C2357E4B127EDE78,C23579AE0125A4B3,C2258814004555A9 | - | Returns an array of replica set objects with custom properties | |
| Get a list of all replica sets with detailed information | GET {{host}}/api/external/replicaSets/all/details Parameters: replicaIds- string: comma separated list of replicaid values that can be used to select specific replica sets e.g.: {{host}}/api/external/databases/all/details?replicaIds=C2357E4B127EDE78,C23579AE0125A4B3,C2258814004555A9 | - | Returns an array of replica set objects with detailed information (including custom properties) |
Custom Properties
| Description | URL | Payload | Response | Response Json |
|---|---|---|---|---|
| Get all custom properties | GET {{host}}/api/external/customProperties Parameters: type - string: can be used to filter for database ('db') or replica set ('rs') custom properties e.g.: {{host}}/api/external/customProperties?type=rs {{host}}/api/external/customProperties?type=db | - | Returns an array of custom property objects |
Custom Property Assignments
| Description | URL | Payload | Response | Response Json |
|---|---|---|---|---|
| Assign x custom properties to y databases | POST {{host}}/api/external/customPropertyAssignment/database Headers: Content-Type: application/json | {
"targetIds": [402, 403, 404],
"customProperties": {
"1001009": "NodeJs",
"1001005": "Very High"
}
}
targetIds - comma separated list of database res_id values customProperties - an object with key / value pairs of custom property id and custom property value | updated - An array of created / updated custom properties error - Contains error information. e.g. if certain targetIds does not exist | |
| Assign x custom properties to y replica sets | POST {{host}}/api/external/customPropertyAssignment/replicaSet Headers: Content-Type: application/json | {
"targetIds": ["C2357E4B127EDE78", "C23579AE0035A477", "C2357714004455A9"],
"customProperties": {
"1001009": "NodeJs",
"1001005": "Very High"
}
}
targetIds - comma separated list of replicaset replicaid values customProperties - an object with key / value pairs of custom property id and custom property value | updated - An array of created / updated custom properties error - Contains error information. e.g. if certain targetIds does not exist |
